OH-58 Main Rotor Blades

be on your mission

with less downtime between

be on your mission

with less downtime between

The VHA OH-58 Main Rotor Blade is a direct composite replacement for the OEM metal blades on OH-58A+ and C models. Featuring a highly efficient NASA-developed airfoil, and an advanced carbon/epoxy construction, this blade delivers increased service life, reduced operating costs, and improved durability - all without hub modification.

Eligible for Public Use via Certificate of Conformity (CoC), with STC approval as a future VHA goal.

The Mission Maker

Our OH-58 Main Rotor Blade is engineered for agencies and operators who demand reliability, longevity, and cost control. With a 6,000-hour service life (1.5x OEM metal blades), operators benefit from fewer replacements, predictable maintenance planning, and lower lifecycle costs.

Designed as a true drop-in replacement, the 20637000-101 installs without hub modification and maintains OEM radius and chord for seamless integration.

6,000-hour service life (1.5x OEM metal blades)
Public Use eligible via Certificate of Conformity (CoC)
Direct replacement for OEM P/N 206-010-250-3, -113, -119
Inconel leading-edge abrasion strip for erosion resistance
Titanium root plates with bonded stainless bushings
Brass mid-span weight for 2/rev vibration reduction
Polyurethane matte finish for long-term durability

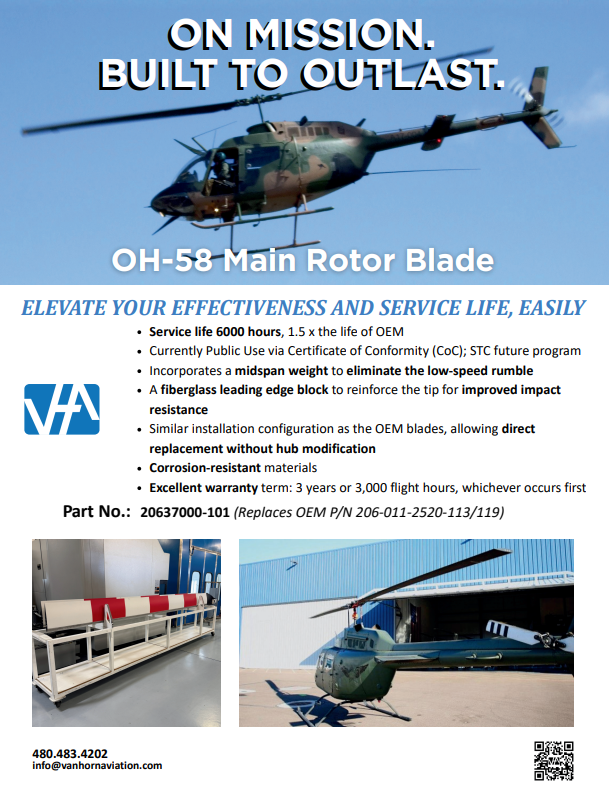

DOWNLOAD PDF FLYER

oh-58 Main rotor Blades

Product Information

PART COMPATABILITY

20637000-101

Eligible Aircraft: OH-58A+, OH-58C

Replaces OEM Blade P/N: 206-010-250-3, -113, -119

Installation: Per TM 55-1250-228-23-1 or latest approved maintenance manual

Availability: Currently available

Warranty Information

Three-years/3,000 flight-hour warranty against manufacturing and material defects (excludes damage due to erosion)

Pricing Information

The OH-58 main rotor blades are available for purchase directly through Van Horn Aviation, please use the Contact Us form for availability and pricing.
